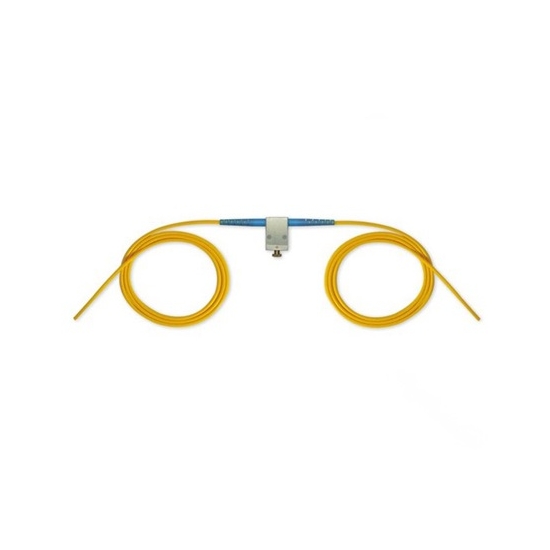

Mini 850nm Variable Optical Attenuator

  • Wavelength: or Custom Wavelength 850nm 830nm 810nm
  • Handling Power: 300mW
  • Fiber Type: Single Mode Fiber
Product Details

  The 850 nm Mini Mechanical Variable Optical Fiber Attenuator ( Mini VOA) is a micro-optic component designed to control the attenuation of the optical signal passing through it, the desired attenuation can be precisely achieved by adjusting a screw. It can be used to precisely balance the signal strengths in fiber circuits, or, it can be used to balance an optical signal when evaluating the dynamic range of the measurement system.




                                                            Features


                                                        Low Original Loss
                                                            High Reliability
                                                            Mini Package
                                                            Wide Attenuation Range

                                                            Applications
                                                            Power Control in Fiber Systems
                                                            Test & Measurement
                                                            Lab and Reseach
                                                            Power Equalization


  Performance Specification

  Parameter

Value

Unit
  Center Wavelength (CWL)

830, 850, or customized

nm
  Bandwidth

±10

nm
  Max. Original Loss

1.0

dB
  Attenuation Range

1.0 - 30

dB
  Adjustment Precision within 10dB

0.1

dB
  Max. PDL (23, CWL, Min. Attenuation)

0.05

dB
  Min. Return Loss

50

dB
  Max. TDL at Attenuation Range

0.01

dB/
  Max. WDL at Minimum Attenuation

0.3

dB
  Max. Optical Power (Continuous Wave)

300

  mW
  Max. Tensile Load

5

N
  Fiber Type

HI 780 Fiber


  Operating Temperature

0 to +70


  Storage Temperature

-40 to +85



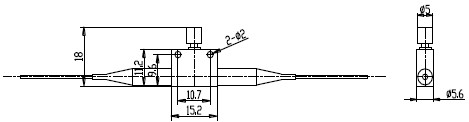

  Note
  *  For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.


  Ordering Information

  MNVOA-AAA-B-CC-DD
  AAA                     B                   CC                   DD
  Wavelength           Fiber Jacket         Fiber Length           Connector

  810 - 810nm               B - 250um Bare         05 - 0.5m             NE - None
  830 - 830nm               Fiber         08 - 0.8m             FA - FC/APC
  850 - 850nm               L - 900um Loose         10 - 1.0m             FP - FC/PC
  SSS - Specify               Tube         15 - 1.5m             SA - SC/APC
                                              SS - Specify               SP - SC/PC
                                                                    LA-  LC/APC
                                                                    LP - LC/PC
                                                                    SS - Specify
